Karta produktu


2SB 009 362-011

HELLA

lampy tylne

BHS 2SB009362011

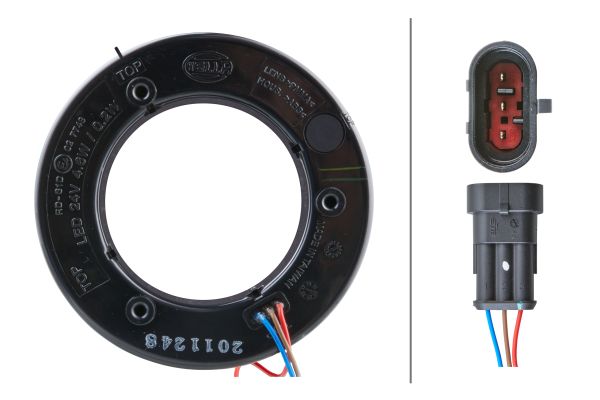

Lampa

Kod GTU: brak


Dostępność

Łódź 0

Pabianice 0

Milionowa 0

Do 10.10-na dziś 14.00

M3 do 18.20 jutro

M11 do 16.00 jutro

M1 do 17.50 jutro

M2 do 17.50 2dni


Parametry

Sposób montażu Oprawa
Sposób montażu Połączenie śrubowe
Projekt lampy LED
Rodzaj lampy LED
Napięcie [V] 24
Strona zabudowy z prawej
Strona zabudowy z lewej
Wysokość [mm] 49
Długość [mm] 112
Funkcja lampy ze światłem STOP (LED)
Funkcja lampy ze światłem tylnym (LED)
Liczba funkcji świateł 2
Rodzaj wtyczki AMP
Rodzaj rejestracji Z aprobatą ECE
Liczba diod LED 16
Długość przewodu [mm] 250
Rodzaj korpusu obudowa z tworzywa sztucznego
Kolor obudowy czarny
Kolor szkła reflektora czerwony
Montaż/demontaż koniecznie do wykonania przez fachowców!

Kody EAN

Kody użytkowe

Informacje producenta

Regarding single or double function lamps with LEDs withoutflasher functionIn connection with these low powers, which arevery different from bulb versions, there can beproblems during operation on various traction vehiclesbecause further lighting functions are detectedby some traction vehicles. This is a vehiclecomfort function which is not required by legislation anddoes not release drivers from their obligationto see for themselves that the lighting equipmentis working.Here, too, faulty diagnoses can be a result of the lowerpower levels involved (instrument panel in the driver cabindicates a bulb failure although the functionis working).The functional ability of these light failure checks canonly be established by the vehicle manufacturer.Operation of the light with alternating current or pulseddirect current is not permitted!The individual light functions may only be operated with avehicle fuse of max. 3A.In the case of onboard current limitation with the valuesspecified above by the onboard control unitan additional fuse for the lamp is not required.

Numery OEM

DAF: 1524097
HITACHI: YA0003931000
KASSBOHRER: 7.525.339.000.0, 7.526.339.000.0
LEYLAND DAF: H7200BKAAD
LIEBHERR: 1 066 527 9
ROSENBAUER: 4010552
SCANIA: SP1030763
VDL: 20285688, 285688
VOLVO: 22273353, 22273355, H7200BKAAD

Odpowiedniki
