Karta produktu
8DD 355 109-601
HELLA PAGID

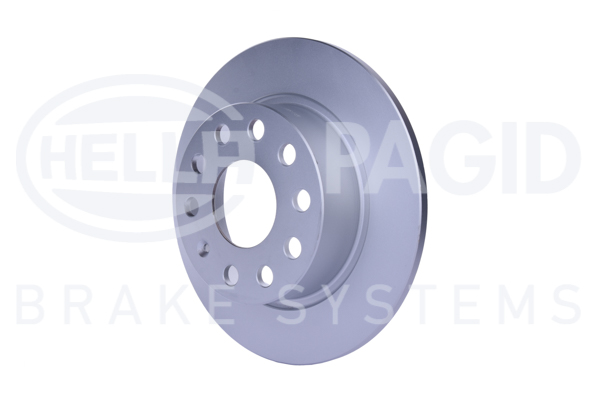

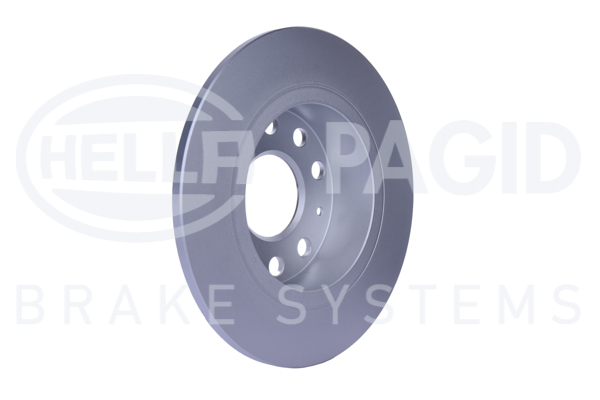

tarcza hamulcowa
HEL 8DD355109601
tarcza ham. malow. tył AU SE SK VW
Kod GTU: 07
Cena
Dostępność
Łódź 0
Pabianice 0
Milionowa 0
M14 do 17.50 jutro

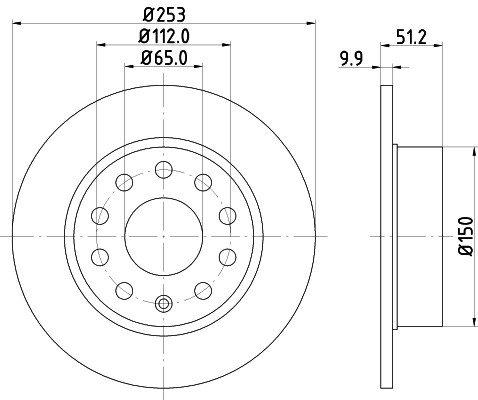

Parametry
| Typ tarczy hamulcowej | pełny |
| średnica zewnętrzna [mm] | 253 |
| Grubość tarczy hamulcowej [mm] | 9,9 |
| Wysokość [mm] | 51,2 |
| Minimalna grubość [mm] | 8 |
| Powierzchnia | pokryty |
| Średnica wewnętrzna [mm] | 140,1 |
| Ø rozmieszczenia otworów [mm] | 112 |
| Średnica otworu centrującego [mm] | 65 |
| Wzór otworów/liczba otworów | 05/10 |
| Średnica otworu szpilki koła [mm] | 15,3 |
| Artykuł uzupełniający / informacja uzupełniająca 2 | bez piasty koła |
| Artykuł uzupełniający / informacja uzupełniająca 2 | bez łożyska koła |
| Artykuł uzupełniający / informacja uzupełniająca 2 | bez sworznia mocującego koła |
| Ciężar [kg] | 3,6 |
| Techniczny numer informacyjny | 54209PRO |
Kody EAN
Kody użytkowe
Numery OEM
AUDI: 1K0615601AB, 1K0615601K, 5C0615601, 5C0615601A, 5Q0615601F
SEAT: 1K0615601AB, 1K0615601K, 5C0615601, 5C0615601A, 5Q0615601F
SKODA: 1K0615601AB, 1K0615601K, 5C0615601, 5C0615601A, 5Q0615601F
SKODA (SVW): 5QD615601, 5QD615601B
VW: 1K0615601AB, 1K0615601K, 5C0615601, 5C0615601A, 5Q0615601F, 8P0098601L, JZW698601AA
VW (SVW): 5QD615601
SEAT: 1K0615601AB, 1K0615601K, 5C0615601, 5C0615601A, 5Q0615601F
SKODA: 1K0615601AB, 1K0615601K, 5C0615601, 5C0615601A, 5Q0615601F
SKODA (SVW): 5QD615601, 5QD615601B
VW: 1K0615601AB, 1K0615601K, 5C0615601, 5C0615601A, 5Q0615601F, 8P0098601L, JZW698601AA
VW (SVW): 5QD615601
Odpowiedniki
A.B.S.: 08950211, 17520, 17520OE
ABE: C4W012ABE, C4W012ABEP
AISIN: X6R901S
AKEBONO: BN0005, BN0005E
AKRON-MALO: 1110031
ALANKO: 10303114, 10304642, 10304799
APEC: DK6087, DSK2221, DSK2930, SDK6087
ASHIKA: 61000902
ASHUKI BY PALIDIUM: P331001
ATE: 24011002771, 24031002771, 410277, 510277
AUGROS: 5290145P
AUTOMOTOR France: PDC0409
BARUM: BAR10277
BENDIX: 521618, 562236B, 562236BC
Bendix: BR2811EURO
BENDIX Braking: BDS1007
BLUE PRINT: ADV184306
BORG & BECK: BBD4382
BOSCH: 0986479099, 0986479941, 0986T15035
BRAKE ENGINEERING: DI956255
BRAXIS: AE0018
BRECK: BR029SA100
BRECO: BS7660, BV7660
BREMBO: 08950210, 08950211, 08950214, 0895021X, 08950275, 59E11409, 8950211, RD178000
BREMSEN: AXBD2158
BREMSI: CD7224S
CAR: 1421022, HPD1022
CHAMPION: 562236CH
CIFAM: 800724C
COMLINE: ADC1457, AND6004
DBA Australia: DBA2811E, DBA2811S, DBA2811X
DELPHI: BG3834, BG3834C, BG5019C, BG5019C18B1
DENCKERMANN: B130260, B130260P
DON: PCD10012
DR!VE+: DP1010110184
DYNAMATRIX: DBD1224
EBC Brakes: BSD1283, D1283
EUROBRAKE: 5815204789, 5815314789, 5815344789
EUROREPAR: 1618882680, 1636908380, 1674250580, 1684244580, 1684315280, 1686338180
FEBI BILSTEIN: 23240
FERODO: DDF1224, DDF12241, DDF1224C, DDF1224C1, DDF1224C1D, DDF1224X
FOMAR FRICTION: FO2673
FREMAX: BD5640
FTE: 9072013, 9082425, 9082426, BS5419, BS5419B, BS5419HB
GALFER: B1G21002771
GIRLING: 6042764, 6064444
HELLA: 530032940
HELLA PAGID: 355010361, 355012801, 355018111, 355023791, 355026421, 355045071, 355109591, 355109601, 355122612, 355124431, 355202621, 8DD355109591, 8DD355109601, 8DD355122612, 8DD355124431
HERTH+BUSS JAKOPARTS: J3310804
Hi-Q: SD5406, SD5413
ICER: 78BD56162, 78BD56402
JAPANPARTS: DP0902, DP0902C
JP GROUP: 1163205700
JURATEK: VAG136
JURID: 562236J, 562236JC, 562236JC1
KAWE: 664900
KEY PARTS: KBD4382
LPR: A1003P, A1003PR
MAPCO: 25831C
MAXGEAR: 190839, 190839MAX, 190839SPORT
METELLI: 230724C
METZGER: 6110036
MEYLE: 1155230018, 1155230018PD, 1155231046PD
MINTEX: MDC1640, MDC1640C, MDC81640C, MVK0059
MOTAQUIP: LVBE385
NAPA: PBD8397
NK: 204789, 314789, 344789
OPTIMAL: BS8018, BS8018C
PAGID: 54209, 54209PRO
QUINTON HAZELL: BDC5419
R BRAKE: 78RBD25616, 78RBD25640
REMSA: 664900
REPSTAR: VW03101510
RIDEX: 82B0018, 82B1730
ROADHOUSE: 664900
sbs: 1815204789, 1815314789, 1815344789
STELLOX: 60204789KSX, 60204789SX
STOP: 562236S
SWAG: 32923240
TEXTAR: 89015800, 92120900, 92120903, 92120905, 98200120901
TOPRAN: 110079
TRUSTING: DF867
TRW: DF4276, DF4276S, DF6444
VAICO: V1040077
VALEO: 186857, 297857, 672546
WAGNER: WGR12241
WOKING: D664900
ZIMMERMANN: 600323400, 600323420, 600323452, 600323470, 600323472, 600323475
ABE: C4W012ABE, C4W012ABEP
AISIN: X6R901S
AKEBONO: BN0005, BN0005E
AKRON-MALO: 1110031
ALANKO: 10303114, 10304642, 10304799
APEC: DK6087, DSK2221, DSK2930, SDK6087
ASHIKA: 61000902
ASHUKI BY PALIDIUM: P331001
ATE: 24011002771, 24031002771, 410277, 510277
AUGROS: 5290145P
AUTOMOTOR France: PDC0409
BARUM: BAR10277
BENDIX: 521618, 562236B, 562236BC
Bendix: BR2811EURO
BENDIX Braking: BDS1007
BLUE PRINT: ADV184306
BORG & BECK: BBD4382
BOSCH: 0986479099, 0986479941, 0986T15035
BRAKE ENGINEERING: DI956255
BRAXIS: AE0018
BRECK: BR029SA100
BRECO: BS7660, BV7660
BREMBO: 08950210, 08950211, 08950214, 0895021X, 08950275, 59E11409, 8950211, RD178000
BREMSEN: AXBD2158
BREMSI: CD7224S
CAR: 1421022, HPD1022
CHAMPION: 562236CH
CIFAM: 800724C
COMLINE: ADC1457, AND6004
DBA Australia: DBA2811E, DBA2811S, DBA2811X
DELPHI: BG3834, BG3834C, BG5019C, BG5019C18B1
DENCKERMANN: B130260, B130260P
DON: PCD10012
DR!VE+: DP1010110184
DYNAMATRIX: DBD1224
EBC Brakes: BSD1283, D1283
EUROBRAKE: 5815204789, 5815314789, 5815344789
EUROREPAR: 1618882680, 1636908380, 1674250580, 1684244580, 1684315280, 1686338180
FEBI BILSTEIN: 23240
FERODO: DDF1224, DDF12241, DDF1224C, DDF1224C1, DDF1224C1D, DDF1224X
FOMAR FRICTION: FO2673
FREMAX: BD5640
FTE: 9072013, 9082425, 9082426, BS5419, BS5419B, BS5419HB
GALFER: B1G21002771
GIRLING: 6042764, 6064444
HELLA: 530032940
HELLA PAGID: 355010361, 355012801, 355018111, 355023791, 355026421, 355045071, 355109591, 355109601, 355122612, 355124431, 355202621, 8DD355109591, 8DD355109601, 8DD355122612, 8DD355124431
HERTH+BUSS JAKOPARTS: J3310804
Hi-Q: SD5406, SD5413
ICER: 78BD56162, 78BD56402
JAPANPARTS: DP0902, DP0902C
JP GROUP: 1163205700
JURATEK: VAG136
JURID: 562236J, 562236JC, 562236JC1
KAWE: 664900
KEY PARTS: KBD4382
LPR: A1003P, A1003PR
MAPCO: 25831C
MAXGEAR: 190839, 190839MAX, 190839SPORT
METELLI: 230724C
METZGER: 6110036
MEYLE: 1155230018, 1155230018PD, 1155231046PD
MINTEX: MDC1640, MDC1640C, MDC81640C, MVK0059
MOTAQUIP: LVBE385
NAPA: PBD8397
NK: 204789, 314789, 344789
OPTIMAL: BS8018, BS8018C
PAGID: 54209, 54209PRO
QUINTON HAZELL: BDC5419
R BRAKE: 78RBD25616, 78RBD25640
REMSA: 664900
REPSTAR: VW03101510
RIDEX: 82B0018, 82B1730
ROADHOUSE: 664900
sbs: 1815204789, 1815314789, 1815344789
STELLOX: 60204789KSX, 60204789SX
STOP: 562236S
SWAG: 32923240
TEXTAR: 89015800, 92120900, 92120903, 92120905, 98200120901
TOPRAN: 110079
TRUSTING: DF867
TRW: DF4276, DF4276S, DF6444
VAICO: V1040077
VALEO: 186857, 297857, 672546
WAGNER: WGR12241
WOKING: D664900
ZIMMERMANN: 600323400, 600323420, 600323452, 600323470, 600323472, 600323475
Samochody osobowe
AUDI: A3 (8P1) (2003-05 » 2013-12), A3 kabriolet (8P7) (2008-04 » 2013-05), A3 Sportback (8PA) (2004-09 » 2015-12)
SEAT: ALTEA (5P1) (2004-03 » 2015-12), ALTEA XL (5P5, 5P8) (2006-10 » 2015-12), LEON (1P1) (2005-05 » 2013-12), LEON (5F1) (2012-09 » 2021-05), LEON Furgon/hatchback (5F1) (2012-09 » 2020-08), LEON SC (5F5) (2013-01 » 2018-12), LEON ST (5F8) (2012-09 » 2020-08), LEON ST Furgon/kombi (5F8) (2013-01 » 2020-08), TOLEDO III (5P2) (2004-04 » 2009-05)
SKODA: OCTAVIA II (1Z3) (2004-02 » 2013-06), OCTAVIA II Combi (1Z5) (2004-02 » 2013-06), OCTAVIA III (5E3, NL3, NR3) (2012-11 » 2021-03), OCTAVIA III Combi (5E5, 5E6) (2012-11 » 2020-10), YETI (5L) (2009-05 » 2017-12)
SKODA (SVW): OCTAVIA liftback (NM2, NM3, NM4) (2014-01 » )
VW: BEETLE (5C1, 5C2) (2011-04 » 2019-07), BEETLE kabriolet (5C7, 5C8) (2011-12 » 2019-07), CADDY III Furgon/minivan (2KA, 2KH, 2CA, 2CH) (2004-03 » 2016-03), CADDY III nadwozie wielkoprzestrzenne (MPV) (2KB, 2KJ, 2CB, (2004-03 » 2016-03), EOS (1F7, 1F8) (2006-03 » 2015-08), GOLF PLUS V (5M1, 521) (2004-12 » 2013-12), GOLF PLUS Van (521) (2009-01 » 2014-08), GOLF V (1K1) (2003-10 » 2010-07), GOLF V Variant (1K5) (2007-01 » 2009-07), GOLF VI (5K1) (2008-10 » 2014-12), GOLF VI kabriolet (517) (2011-03 » 2017-10), GOLF VI Van (5K1_) (2008-10 » 2012-11), GOLF VI Variant (AJ5) (2009-07 » 2014-07), JETTA IV (162, 163, AV3, AV2) (2008-01 » 2019-12), JETTA VII sedan (BU3, BU4) (2017-12 » ), SCIROCCO III (137, 138) (2008-05 » 2018-01), SCIROCCO Van (137) (2008-06 » 2014-05)
VW (SVW): LAVIDA (0C1, 0E1, 0C2) (2018-05 » )
SEAT: ALTEA (5P1) (2004-03 » 2015-12), ALTEA XL (5P5, 5P8) (2006-10 » 2015-12), LEON (1P1) (2005-05 » 2013-12), LEON (5F1) (2012-09 » 2021-05), LEON Furgon/hatchback (5F1) (2012-09 » 2020-08), LEON SC (5F5) (2013-01 » 2018-12), LEON ST (5F8) (2012-09 » 2020-08), LEON ST Furgon/kombi (5F8) (2013-01 » 2020-08), TOLEDO III (5P2) (2004-04 » 2009-05)
SKODA: OCTAVIA II (1Z3) (2004-02 » 2013-06), OCTAVIA II Combi (1Z5) (2004-02 » 2013-06), OCTAVIA III (5E3, NL3, NR3) (2012-11 » 2021-03), OCTAVIA III Combi (5E5, 5E6) (2012-11 » 2020-10), YETI (5L) (2009-05 » 2017-12)
SKODA (SVW): OCTAVIA liftback (NM2, NM3, NM4) (2014-01 » )
VW: BEETLE (5C1, 5C2) (2011-04 » 2019-07), BEETLE kabriolet (5C7, 5C8) (2011-12 » 2019-07), CADDY III Furgon/minivan (2KA, 2KH, 2CA, 2CH) (2004-03 » 2016-03), CADDY III nadwozie wielkoprzestrzenne (MPV) (2KB, 2KJ, 2CB, (2004-03 » 2016-03), EOS (1F7, 1F8) (2006-03 » 2015-08), GOLF PLUS V (5M1, 521) (2004-12 » 2013-12), GOLF PLUS Van (521) (2009-01 » 2014-08), GOLF V (1K1) (2003-10 » 2010-07), GOLF V Variant (1K5) (2007-01 » 2009-07), GOLF VI (5K1) (2008-10 » 2014-12), GOLF VI kabriolet (517) (2011-03 » 2017-10), GOLF VI Van (5K1_) (2008-10 » 2012-11), GOLF VI Variant (AJ5) (2009-07 » 2014-07), JETTA IV (162, 163, AV3, AV2) (2008-01 » 2019-12), JETTA VII sedan (BU3, BU4) (2017-12 » ), SCIROCCO III (137, 138) (2008-05 » 2018-01), SCIROCCO Van (137) (2008-06 » 2014-05)
VW (SVW): LAVIDA (0C1, 0E1, 0C2) (2018-05 » )
