Karta produktu
8DD 355 129-611
HELLA PAGID

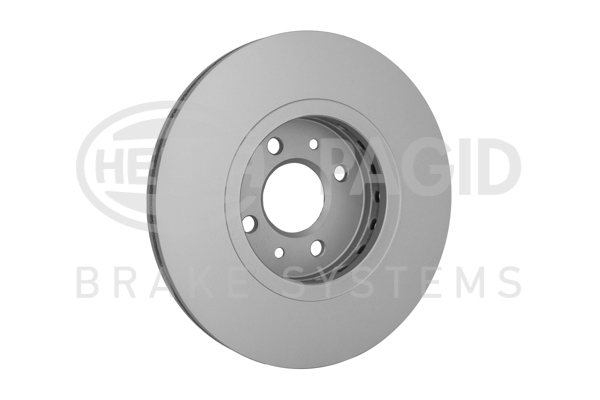

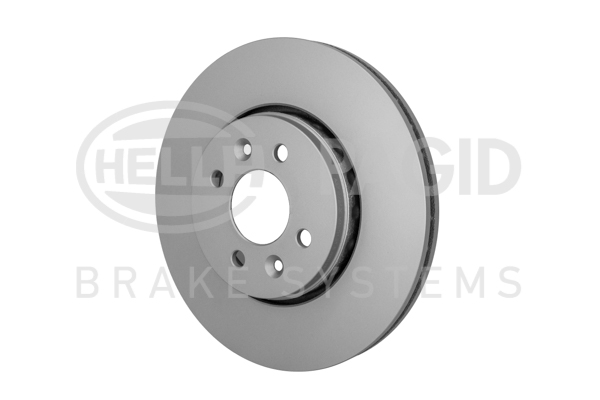

tarcza hamulcowa
HEL 8DD355129611
tarcza ham. malow. HC prz. DA RE
Kod GTU: 07
Cena
Dostępność
Łódź 0
Pabianice 0
Milionowa 0
M14 do 17.50 jutro

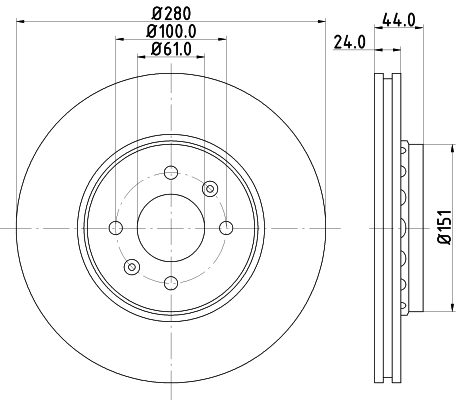

Parametry
| Typ tarczy hamulcowej | wentylowany zewnętrznie |
| średnica zewnętrzna [mm] | 280 |
| Grubość tarczy hamulcowej [mm] | 24 |
| Wysokość [mm] | 44 |
| Minimalna grubość [mm] | 21,8 |
| Przetwarzanie | wysoko nawęglany |
| Powierzchnia | pokryty |
| Średnica wewnętrzna [mm] | 140 |
| Ø rozmieszczenia otworów [mm] | 100 |
| Średnica otworu centrującego [mm] | 61 |
| Wzór otworów/liczba otworów | 04/06 |
| Ø otworu sworznia koła [mm] | 13,8 |
| Artykuł uzupełniający / informacja uzupełniająca 2 | bez piasty koła |
| Artykuł uzupełniający / informacja uzupełniająca 2 | bez łożyska koła |
| Artykuł uzupełniający / informacja uzupełniająca 2 | bez sworznia mocującego koła |
| Ciężar [kg] | 6,6 |
Kody EAN
Kody użytkowe
Numery OEM
DACIA: 402060540R, 402065616R, 402066818R, 8671005975
RENAULT: 402065719R, 402068053R, 402069518R, 7700426389, 7700428389, 7701205086, 7701205230, 7701205842, 7701206118, 7701207829
SAMSUNG: 402069518R
RENAULT: 402065719R, 402068053R, 402069518R, 7700426389, 7700428389, 7701205086, 7701205230, 7701205842, 7701206118, 7701207829
SAMSUNG: 402069518R
Odpowiedniki
A.B.S.: 09813721, 09A72731, 16924, 16924OE, 18210, 18317
ABE: C3R011ABE
AISIN: B6F912S
AKEBONO: BN0094, BN0094E, BN0439, BN0439E
AKRON-MALO: 1110179, 1110422
ALANKO: 10305416
APEC: DK6088, DSK3133, DSK826, SDK6088
ASHIKA: 6000033
ASHUKI BY PALIDIUM: P330039
ATE: 24012401581, 24012402531, 24032401581, 424158, 524158
AUGROS: 5290602P, 5972545P
AUTOMOTOR France: PDC9446
BARUM: BAR24158
BENDIX: 522000, 562103B
BENDIX Braking: BDS1012
BLUE PRINT: ADP154313
BORG & BECK: BBD4219, BBD5329
BOSCH: 0986478590, 0986479885, 0986479A85, 0986479R67
BRAKE ENGINEERING: DI955993
BRAXIS: AE0013, AE1205
BRECK: BR308VA100
BRECO: BS8394, BS9106, BV8394, BV9106
BREMBO: 09738640, 09738641, 09738644, 09813720, 09813721, 09813724, 0981372X, 09813776, 09A72730, 09A72731, 9813721, 9813724, FD117000, FS117000
BREMSEN: AXBD1008
BREMSI: CD8350V
CAR: 1421781, 142547, HPD547
CHAMPION: 562103CH, 562959CH
CIFAM: 8001468C, 800517C
COMLINE: ADC1517V, ADC2720V, AND6028, AND6780
DBA Australia: DBA2353E, DBA2353S, DBA2353X, DBA42353, DBA42353S
DELPHI: BG3430, BG3430C, BG3430T, BG4536, BG4536C
DENCKERMANN: B130138
DON: PCD10462
DR!VE+: DP1010110767
DYNAMATRIX: DBD1124, DBD2350C
E.T.F.: 194304
EBC Brakes: BSD982, D1937, GD982, USR982
EUROBRAKE: 5815203919, 5815203997, 5815313919, 5815313997
EUROREPAR: 1618880480, 1667854980, 1686333680, 1686337180, 1686718080
FEBI BILSTEIN: 19923
FERODO: DDF1124, DDF11241, DDF1124C, DDF1124C1, DDF1124X, DDF2350C, DDF2350C1
FOMAR FRICTION: FO2188
FREMAX: BD4304, BD7829
FTE: 9072012, 9072371, 9082001, BS5143, BS5143B, BS7586, BS7586B
GALFER: B1G22401581, B1G22402531
GIRLING: 6041101, 6042551
HELLA: 530032882
HELLA PAGID: 355019391, 355108641, 355108651, 355119361, 355124951, 355126811, 355129611, 8DD355108641, 8DD355108651, 8DD355119361, 8DD355124951, 8DD355126811, 8DD355129611
Hi-Q: SD3065, SD3073, SD3073B
ICER: 78BD78292
JAPANPARTS: DI033, DI033C
JURATEK: REN130
JURID: 562103, 562103J, 562103JC, 562959JC, 562959JC1
KAWE: 6149910, 658310
LPR: R1074V, R1074VR, R1583V, R1583VR
MAPCO: 15117C
MAXGEAR: 190803, 190803MAX, 190803SPORT
METELLI: 230517C, 231468C
METZGER: 6110033, 6110729, WMKF99906
MEYLE: 16155210004, 16155210004PD, 16835210004PD
MGA: D1317
MINTEX: MDC1083, MDC2515, MDC2515C, MDK0160
MOTAQUIP: LVBD1748, LVBE237Z
MOTRIO: 8671005975
NAPA: PBD8423
NK: 203919, 203997, 313919, 313997
OPTIMAL: BS5830, BS5830C, BS9068, BS9068C
PAGID: 54139, 54139PRO, 55546
QH Benelux: HP57897
QUINTON HAZELL: BDC5143, BDC6054
R BRAKE: 78RBD27829
REMSA: 6149910, 658310
REPSTAR: RE03101026
RIDEX: 82B0217, 82B1223
ROADHOUSE: 6149910
ABE: C3R011ABE
AISIN: B6F912S
AKEBONO: BN0094, BN0094E, BN0439, BN0439E
AKRON-MALO: 1110179, 1110422
ALANKO: 10305416
APEC: DK6088, DSK3133, DSK826, SDK6088
ASHIKA: 6000033
ASHUKI BY PALIDIUM: P330039
ATE: 24012401581, 24012402531, 24032401581, 424158, 524158
AUGROS: 5290602P, 5972545P
AUTOMOTOR France: PDC9446
BARUM: BAR24158
BENDIX: 522000, 562103B
BENDIX Braking: BDS1012
BLUE PRINT: ADP154313
BORG & BECK: BBD4219, BBD5329
BOSCH: 0986478590, 0986479885, 0986479A85, 0986479R67
BRAKE ENGINEERING: DI955993
BRAXIS: AE0013, AE1205
BRECK: BR308VA100
BRECO: BS8394, BS9106, BV8394, BV9106
BREMBO: 09738640, 09738641, 09738644, 09813720, 09813721, 09813724, 0981372X, 09813776, 09A72730, 09A72731, 9813721, 9813724, FD117000, FS117000
BREMSEN: AXBD1008
BREMSI: CD8350V
CAR: 1421781, 142547, HPD547
CHAMPION: 562103CH, 562959CH
CIFAM: 8001468C, 800517C
COMLINE: ADC1517V, ADC2720V, AND6028, AND6780
DBA Australia: DBA2353E, DBA2353S, DBA2353X, DBA42353, DBA42353S
DELPHI: BG3430, BG3430C, BG3430T, BG4536, BG4536C
DENCKERMANN: B130138
DON: PCD10462
DR!VE+: DP1010110767
DYNAMATRIX: DBD1124, DBD2350C
E.T.F.: 194304
EBC Brakes: BSD982, D1937, GD982, USR982
EUROBRAKE: 5815203919, 5815203997, 5815313919, 5815313997
EUROREPAR: 1618880480, 1667854980, 1686333680, 1686337180, 1686718080
FEBI BILSTEIN: 19923
FERODO: DDF1124, DDF11241, DDF1124C, DDF1124C1, DDF1124X, DDF2350C, DDF2350C1
FOMAR FRICTION: FO2188
FREMAX: BD4304, BD7829
FTE: 9072012, 9072371, 9082001, BS5143, BS5143B, BS7586, BS7586B
GALFER: B1G22401581, B1G22402531
GIRLING: 6041101, 6042551
HELLA: 530032882
HELLA PAGID: 355019391, 355108641, 355108651, 355119361, 355124951, 355126811, 355129611, 8DD355108641, 8DD355108651, 8DD355119361, 8DD355124951, 8DD355126811, 8DD355129611
Hi-Q: SD3065, SD3073, SD3073B
ICER: 78BD78292
JAPANPARTS: DI033, DI033C
JURATEK: REN130
JURID: 562103, 562103J, 562103JC, 562959JC, 562959JC1
KAWE: 6149910, 658310
LPR: R1074V, R1074VR, R1583V, R1583VR
MAPCO: 15117C
MAXGEAR: 190803, 190803MAX, 190803SPORT
METELLI: 230517C, 231468C
METZGER: 6110033, 6110729, WMKF99906
MEYLE: 16155210004, 16155210004PD, 16835210004PD
MGA: D1317
MINTEX: MDC1083, MDC2515, MDC2515C, MDK0160
MOTAQUIP: LVBD1748, LVBE237Z
MOTRIO: 8671005975
NAPA: PBD8423
NK: 203919, 203997, 313919, 313997
OPTIMAL: BS5830, BS5830C, BS9068, BS9068C
PAGID: 54139, 54139PRO, 55546
QH Benelux: HP57897
QUINTON HAZELL: BDC5143, BDC6054
R BRAKE: 78RBD27829
REMSA: 6149910, 658310
REPSTAR: RE03101026
RIDEX: 82B0217, 82B1223
ROADHOUSE: 6149910
Samochody osobowe
DACIA: DOKKER Express Furgon/minivan (2012-11 » ), DOKKER nadwozie wielkoprzestrzenne (MPV) (KE_) (2012-11 » ), DOKKER pick-up (2017-09 » ), JOGGER (RK_) (2021-09 » ), LODGY (JS_) (2012-03 » )
RENAULT: CAPTUR I (J5_, H5_) (2013-06 » ), CLIO II (BB_, CB_) (1998-03 » 2016-12), CLIO III (BR0/1, CR0/1) (2005-01 » 2014-12), CLIO III Furgon/hatchback (SB_, SR_) (2005-06 » ), CLIO V (B7_) (2019-06 » ), DOKKER (2013-12 » ), KANGOO (KC0/1_) (1997-08 » ), KANGOO Express (FC0/1_) (1997-08 » ), LAGUNA I (B56_, 556_) (1993-11 » 2002-08), LAGUNA I Grandtour (K56_) (1995-09 » 2002-08), LODGY (JS_) (2013-07 » ), MEGANE I (BA0/1_) (1995-08 » 2004-12), MEGANE I Cabriolet (EA0/1_) (1996-10 » 2003-08), MEGANE I Classic (LA0/1_) (1996-09 » 2008-08), MEGANE I Coach (DA0/1_) (1996-03 » 2003-08), MEGANE I Grandtour (KA0/1_) (1999-03 » 2003-08), MEGANE I Hatchback Van (SA0/1_) (1995-08 » 2003-07), Megane I Kombi van (KA_) (2000-02 » 2003-07), MEGANE II (BM0/1_, CM0/1_) (2001-07 » 2012-10), MEGANE II Coupe-Cabriolet (EM0/1_) (2003-09 » 2010-03), MEGANE II Furgon/kombi (KM_) (2003-08 » 2009-07), MEGANE II Hatchback Van (KM0/2_) (2003-08 » 2009-07), MEGANE II Kombi (KM0/1_) (2003-08 » 2012-08), MEGANE II sedan (LM0/1_) (2003-08 » ), MEGANE Scenic (JA0/1_) (1996-10 » 2001-12), MEGANE Scenic VAN (JA0/1_) (1996-10 » 2001-12), SANDERO/STEPWAY II (B8_) (2013-11 » ), SCENIC I nadwozie wielkoprzestrzenne (MPV) (JA0/1_, FA0_) (1999-08 » 2010-07), SCENIC I VAN (FA0_, JA0/1_) (1999-08 » 2010-07), SCENIC II (JM0/1_) (2003-06 » 2010-07), TWINGO II (CN0_) (2007-03 » ), WIND (E4M_) (2010-07 » )
SAMSUNG: QM3 (2013-12 » )
RENAULT: CAPTUR I (J5_, H5_) (2013-06 » ), CLIO II (BB_, CB_) (1998-03 » 2016-12), CLIO III (BR0/1, CR0/1) (2005-01 » 2014-12), CLIO III Furgon/hatchback (SB_, SR_) (2005-06 » ), CLIO V (B7_) (2019-06 » ), DOKKER (2013-12 » ), KANGOO (KC0/1_) (1997-08 » ), KANGOO Express (FC0/1_) (1997-08 » ), LAGUNA I (B56_, 556_) (1993-11 » 2002-08), LAGUNA I Grandtour (K56_) (1995-09 » 2002-08), LODGY (JS_) (2013-07 » ), MEGANE I (BA0/1_) (1995-08 » 2004-12), MEGANE I Cabriolet (EA0/1_) (1996-10 » 2003-08), MEGANE I Classic (LA0/1_) (1996-09 » 2008-08), MEGANE I Coach (DA0/1_) (1996-03 » 2003-08), MEGANE I Grandtour (KA0/1_) (1999-03 » 2003-08), MEGANE I Hatchback Van (SA0/1_) (1995-08 » 2003-07), Megane I Kombi van (KA_) (2000-02 » 2003-07), MEGANE II (BM0/1_, CM0/1_) (2001-07 » 2012-10), MEGANE II Coupe-Cabriolet (EM0/1_) (2003-09 » 2010-03), MEGANE II Furgon/kombi (KM_) (2003-08 » 2009-07), MEGANE II Hatchback Van (KM0/2_) (2003-08 » 2009-07), MEGANE II Kombi (KM0/1_) (2003-08 » 2012-08), MEGANE II sedan (LM0/1_) (2003-08 » ), MEGANE Scenic (JA0/1_) (1996-10 » 2001-12), MEGANE Scenic VAN (JA0/1_) (1996-10 » 2001-12), SANDERO/STEPWAY II (B8_) (2013-11 » ), SCENIC I nadwozie wielkoprzestrzenne (MPV) (JA0/1_, FA0_) (1999-08 » 2010-07), SCENIC I VAN (FA0_, JA0/1_) (1999-08 » 2010-07), SCENIC II (JM0/1_) (2003-06 » 2010-07), TWINGO II (CN0_) (2007-03 » ), WIND (E4M_) (2010-07 » )
SAMSUNG: QM3 (2013-12 » )
